HYPERLITE DL5

The Hyperlite DL5 is the only ASME PVHO-1 Case 18 compliant, foldable, modular, lightweight double-lock hyperbaric chamber designed for use in challenging military environments, such as military diving operations or submarine escape & rescue.

Hyperlite DL5 - Key Features

Weight

ML: 230 kg*
EL: 187 kg*
Combined: ˃550 kg*

PACKAGED VOLUME

Main Lock: 1.58m3
Dimensions:1168mm x 1043mm x 1297mm
Entry Lock:1.58m3
Dimensions: 1168mm x 1043mm x 1297mm

CERTIFICATIONS

ASME PVHO
1 Case 18 Compliant

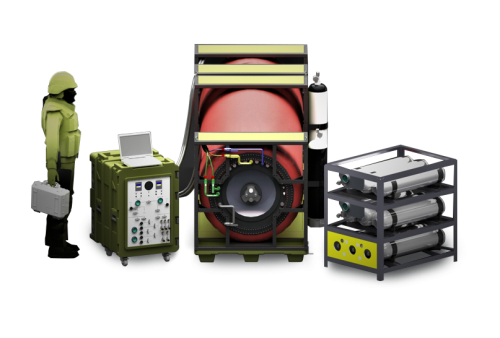

Product Photos

DL5 Technical Specification

Exact Specification can be altered to Customer Preference

Description Imperial Metric
ML Length 100 in.* 254 cm*
Diameter 42 in. 107 cm
Window Thickness 1.7 in. 4.31 cm
Bladder Thickness 22.19 in. 56.36 cm
PV Weight 470lb* 213kg*
PV Volume 80 ft3* 24.4 m3*
EL Length 40" 100cm
Diameter 42 in. 107 cm
Window Thickness 1.7 in. 4.31 cm
Bladder Thickness 22.19 in. 56.36 cm
PV Weight 507 lb 230 kg
PV Volume 94 ft.3 2,662 litres
Max. Allowable Working Pressure 165 fsw 50 msw
Production Test Pressure 248 fsw 76 msw
Prototype Test Pressure Achieved 809 fsw 246 msw

System Advantages

Occupants

Multiple Occupant, Double-Lock System providing Hands-On Medical Care Capability

The DL5 System is equipped with a large Main Lock (appr. 250cm) and a smaller Entry Lock (appr. 100cm) providing ample room inside the chamber for multiple patients or for a patient and a tender to provide hands-on medical attention. The Entry Lock allows for a patient to move in and out of the Main Lock during a treatment.

Volume & Weight

Foldable Tube with Small Packaged Volume

The small packaged volume, together with the smart design of the Hyperlite DL5 Case is intended to provide the end-user with multiple options for mobilisation through base lift – through an inbuilt pallet system, overhead lift – through a or through a wheeled option. The external frame support, termed the exoskeleton, allows for multiple fixture and fitting options to be added, making the case highly versatile for additional subsystems and transport options.

Certifications

Global certifications & the most extensive testing

Hyperlite Chambers are the most extensively tested hyperbaric chambers in the industry. Our multiplace chamber systems have completed a rigorous Prototype Test program, witnessed by Lloyds Register as in compliance with ASME PVHO Case 18.  In addition, at the request of a Military Customer, The Hyperlite DL5 underwent a damage tolerance test with one (1)  .762FMJ fired from an M16 rifle. The first known test of it’s kind, the results demonstrated that even if the pressure vessel is hit by a large rifle bullet, the pressure vessel will not catastrophically fail. Instead the system depressurised in a slow controlled manner, demonstrating that the materials used in the Hyperlite DL5 are more inherently safe when being operated in austere environments when compared to traditional metallic chambers.

DESIGN CODES & STANDARDS
DESIGN CODES ASME PVHO-1 (2012) & Case 18
TEST WITNESSING LLOYD’S REGISTER
QUALITY ASSURANCE ASSESSORS SGS UK LTD SYSTEMS & SERVICES CERTIFICATION ISO 13485:2016
PROTOTYPE TESTING
OVERPRESSURE TEST 10 x PVHOs at 360 psi for 30 minutes @ 38˚C
EXTENDED DURATION CREEP TEST 10 x PVHOs at 300 psi for 300 hours @ 38˚C
CYCLIC PRESSURE TEST 4000 CYCLES - 0 to 80 psi
CYCLIC FOLDING TEST 1100 CYCLES
COLD STORAGE TEST 2 x PVHOs @ - 18˚ C
DAMAGE TOLERANCE TESTING Controlled depressurisation after .762 round from 91 meters
