Chamber Monitoring Systems
Portable Stand-alone monitoring systems for real-time assessment of chamber pressure, temperature, temperature and humidity.
- Constant monitoring of vital parameters
- Can be retrofitted into existing hyperlite chamber systems
- Alarm settings on all monitored parameters
- Separate PC software allows graphical visualization of the instrument data
- Low power consumption to allow autonomous operations from a battery pack
- Available with either imperial or metric units
- Optional in chamber parameter display
Chamber Monitoring System (CMS)
The Hyperbaric Sensorbox for Multiplace Chambers also displays the parameters to the occupants
New for 2020, the CMS is a real-time continuous chamber monitoring system that allows the chamber environment to be monitored continuously throughout a treatment. The following parameters are displayed:
- Pressure
- Temperature
- Humidity
- Oxygen Level
- Carbon Dioxide Level
The system also includes audible and visual alarm systems to warn the operator if the chamber environment is outside recommended parameters.
The system runs off a proprietary purpose-built software, stand-alone from any commercial platforms such as IoS, Android and or Windows, making the system inherently secure from cyberattack.
One Monitor and sensor box will be provided per chamber lock, providing both the Operator and the Occupants with comprehensive chamber environment data throughout any treatments.
The CMS can be combined with the Communications System to provide a single electronic module or as a standalone system. It is also possible to retrofit a CMS to in-service hyperbaric chambers.
CDRS Software System
The CDRS software program is supplied together with a choice of ruggedised tablet or laptop. The laptop is directly hardwired to the instrumentation through a cable. The CDRS shows real time data which can be provided in numerical or graph displaying Pressure (vertical access) and Time (horizontal axis). The software also displays the O2, CO2, Temperature and Humidity levels. The software displays timers, which can be triggered slightly below the treatment depth, allowing air-breaks to be conducted at the appropriate time.

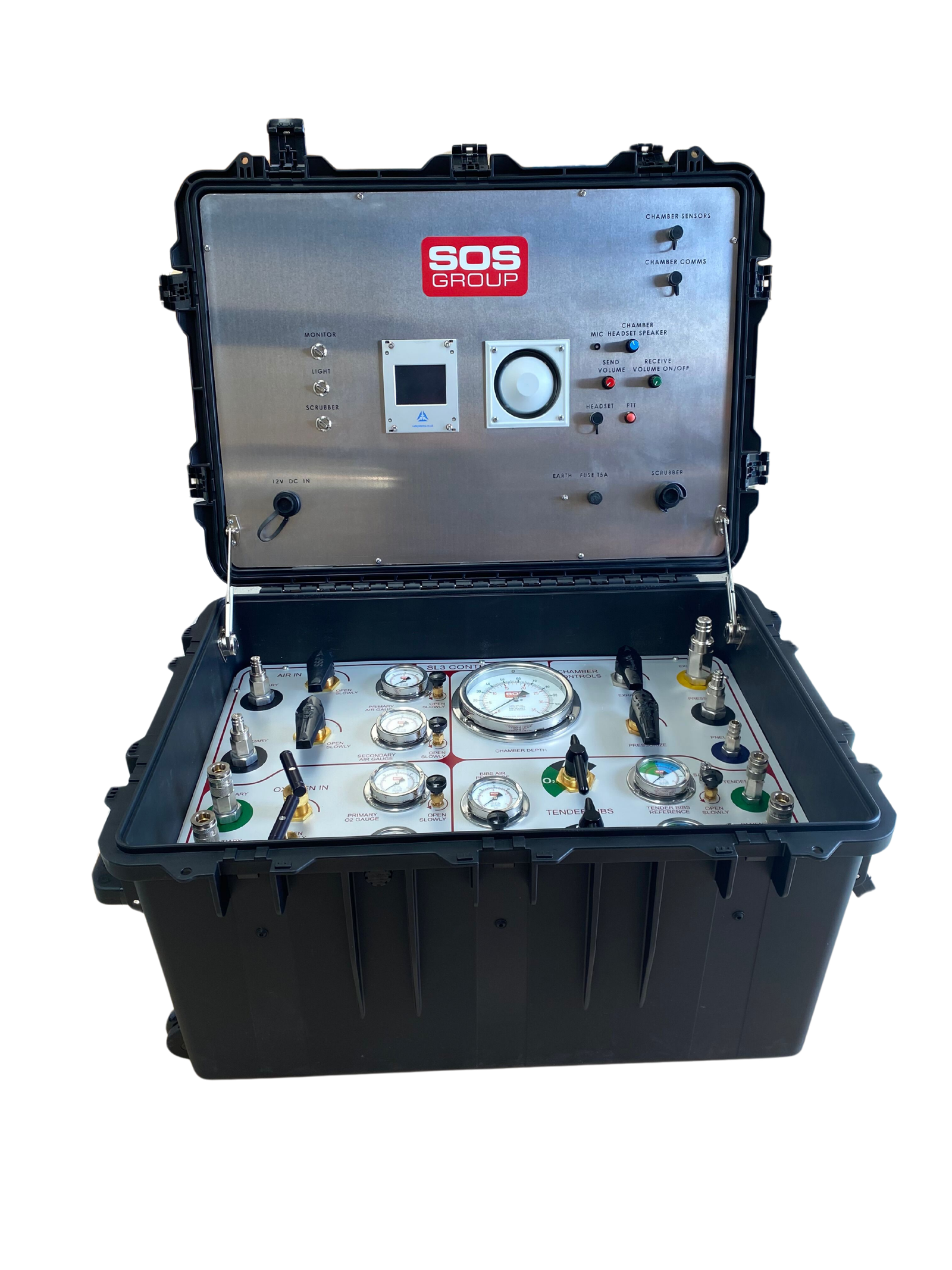

Product Photos
Technical Information
| Compliant with the following Directives | |
|---|---|
| 2004/108/EC | Electromagnetic Compatibility Directive |
| EN61326-1:2013 |
EMC Requirements Electrical equipment for measurement, control and laboratory use. Intended for use in an industrial electromagnetic environment. |
| EN61010-1:2010 |
Safety requirements Electrical equipment for measurement, control and laboratory use. |
| Chemical Oxygen Sensor | |
|---|---|
| Part number | D-05 |
| Lifetime |
~500,000 % SEV-hours, ~2.5 years @ 20.9 % SEV |
| Range | 0 – 100 % |
| Accuracy | ± 0.5 % |
| Response Time | T90 <14s |
| NDIR Carbon Dioxide Sensor | |
|---|---|
| Range | 0 – 5.00 %SEV |
| Accuracy | ±5% of reading or ±2% of full scale |
| Response Time | T90 <30s |
| Pressure Compensation Range | -0.3 - 6 bar (-9 – 200 FSW) |
| Depth Sensor | |
|---|---|
| Part number | -30 – 200 FSW |
| Lifetime | ±0.75 FSW |
| Response Time | <10s |
| Temperature & Humidity Sensor | |
|---|---|
| Temperature Range Range | 32 – 122 °F |
| Temperature accuracy Range | ± 0.4 °F |
| Humidity Range | 0 – 100 %RH |
| Humidity Accuracy | ± 1.8 %RH |
| Response Time | <10s |
| Sensor pack power supply | |
|---|---|
| Supply Voltage | 10 - 36 V |
| Maximum Current | 50mA |
|
DC Power Input Voltage |
10 – 36 V |
|
DC Power Input Power |
5 W |
| Sensor Module | |
|---|---|
| Alarms | |
| Loudness | 72 dB @ 1m |
| Maximum current | 1A |

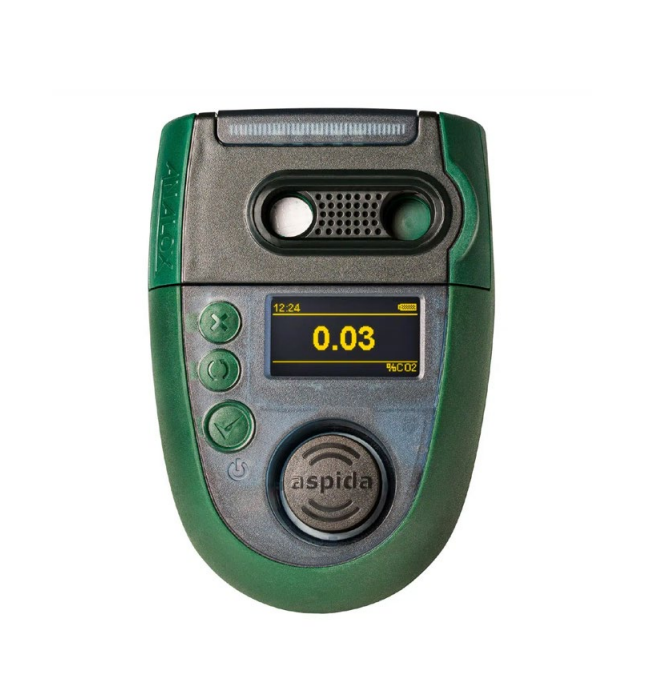

Back-Up Handheld Gas Monitors
The combined O2/CO2 Monitor provides a secondary means of monitoring the chamber gas, if the primary system is not functioning effectively. The Combined Monitor displays of the O2 and CO2 content inside the chamber, with adjustable alarms and data logging, The mode of operation is by taking an air sample, at regular intervals, from the chamber and measuring the O2 and CO2 from the outside sample line.
